Plug-and-play balcony PV systems powered by TOP-TEK Microinverter

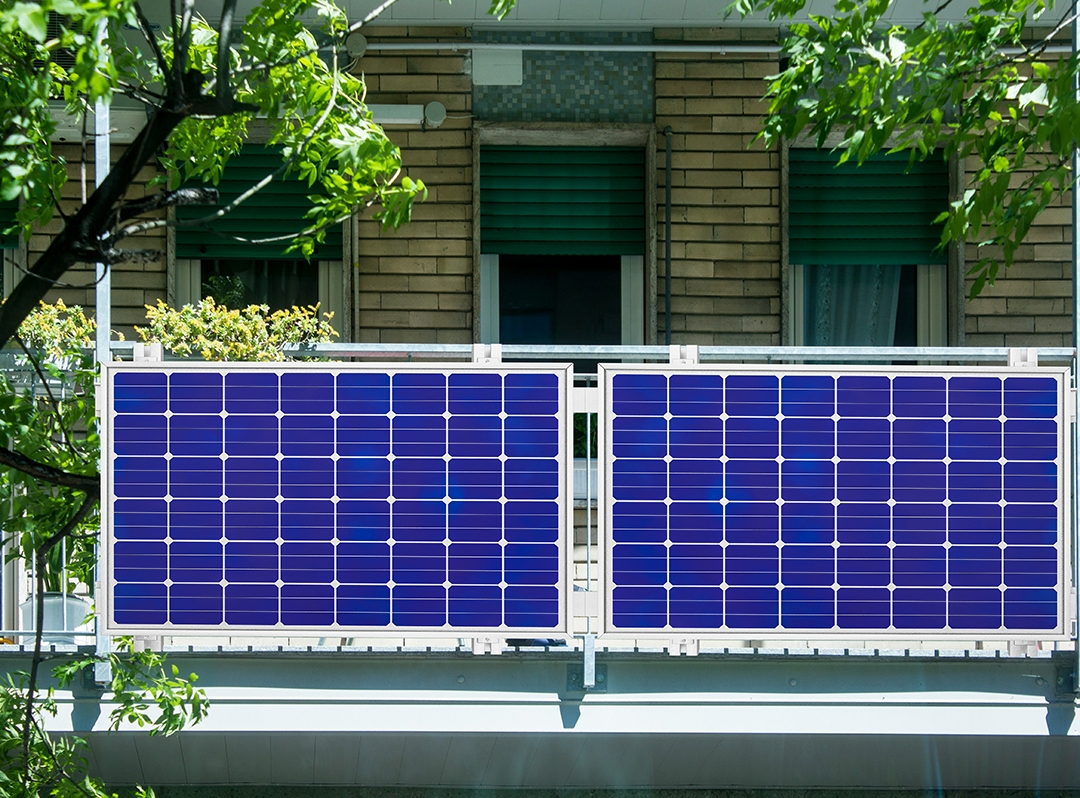

What Is a Balcony PV System?
Balcony PV systems are compact, plug-and-play solar energy solutions designed for apartments, rented homes, and other residential settings without access to rooftop space. With rising energy costs and growing environmental awareness, these systems are becoming increasingly popular nowadays.
At the heart of a balcony PV system is the microinverter, which converts solar energy into usable electricity for home appliances. TOP-TEK UF Series microinverters are specially designed for high efficiency, safety, and easy integration with balcony setups.
Why Balcony PV Systems?
No need for rooftop installations
Simple plug-in design with Schuko plug (in many countries)
Ideal for renters and urban residents
Fast return on investment and reduced electricity bills
Compliant with EU safety standards
Why Choose TOP-TEK?
TOP-TEK microinverters ensure maximum power output, reliable performance, seamless installation, and improves safety, making your transition to green energy easier than ever.
Each PV module has an independent Maximum Peak Power Tracking (MPPT) control to ensure that the maximum power is produced to the utility grid regardless of the performance of other PV modules in the array. When PV modules in the array are shaded, dirt accumulated, light deviated, or the performance of one module is lower than others, the TOP-TEK Microinverter can independently optimize the performance of each module in the array to ensure the entire PV array achieves
maximum energy output.
In a typical string inverter installation, the PV modules are connected in series. The voltage gradually accumulates until a high voltage value (from 600Vdc up to 1000Vdc)) is reached at the end of the PV string. This extremely high DC voltage poses a risk of electrical shocks or electrical arcs, and which could lead to a fire.
When using TOP-TEK microinverter, PV modules are connected in parallel. Voltage at the back of each PV module never exceeds PV modules Voc, which is lower than 60Vdc for most of PV modules with using TOP-TEK microinverter. This low voltage is considered “safe to touch” by fire department and eliminates the risk of electrical shock, electrical arcs and fire.
Higher reliability
TOP-TEK microinverter are capable of operating at outdoor ambient temperatures up to 65 deg C (or 149 F). The inverter case is designed for outdoor installation and complies with IP67 enclosure environmental rating.
Easier installation
UF series microinverter have 2 input channels with independent MPPT and high input current and output power to accommodate today’s larger power module. Users can directly connect their cell phone to UF series through Bluetooth to obtain real-time data of solar systems. In addition to direct connection, UF series can connect to a router via Wi-Fi and send data to a cloud server for remote monitoring.
Through an AC extension cable provided by TOP-TEK, W series could be plugged into a socket and start output energy, truly realizing easy and convenient grid-connected power generation.
TOP-TEK Microinverter UF series Introduction
The UF series TOP-TEK Microinverter is used in balcony and DIY systems and include the following key elements:
PV modules
Power Cord
UF series Microinverter
Router
Cell phone
One microinverter connects to two modules with independent MPPT
Maximum output power reaching 800 W depending on models
Dedicated for balcony and DIY systems
Highly reliable, IP67 rated
Built in Wi-Fi and Bluetooth
Integrated safety protection relay
UF Series has a rated output power of 800W / 1000 W. Each channel can connect 2 PV modules. A maximum of 2 PV modules can be connected to a single UF Series unit, and multiple units can be paralleled and networked. Please refer to the wiring diagram below.
Expandable to multiple inverters in parallel
▼
Product Specification
